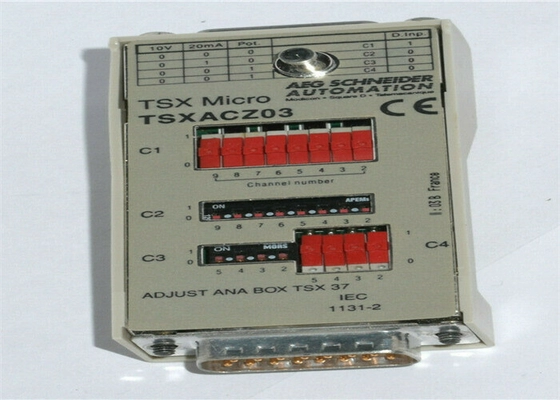

    Schneider Electric TSXACZ03 Adjustment Box for TSX Micro I O Module Modicon Micro

    Ask Lasest Price
    Brand Name : Schneider
    Model Number : TSXACZ03
    Price : Negotiations
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    Schneider Electric TSXACZ03 Adjustment Box for TSX Micro I O Module Modicon Micro

    Schneider Electric TSXACZ03 Adjustment Box for TSX Micro I O Module Modicon Micro



    Main
    range of product
    Modicon TSX Micro automation platform

    product or component type
    Modular base controller




    Complementary
    number of slots
    3

    integrated connection type
    1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s
    1 Modbus Modbus RTU 19.2 kbit/s

    realtime clock
    With

    memory description
    Flash 15 Kwords data
    Internal RAM 20 Kwords data
    Internal RAM (with PCMCIA card) 128 Kwords program and data
    Internal RAM 128 Kwords data storage

    maximum size of object areas
    128 %KWi constant words
    256 %Mi
    1 %MWi internal words

    execution time per instruction
    0.13 µs Boolean without PCMCIA card
    4.5 µs arithmetic REAL floating without PCMCIA card
    0.19 µs Boolean with PCMCIA card
    4.5 µs arithmetic REAL floating with PCMCIA card

    execution time for 1 Kinstruction
    5.88 100 % Boolean without PCMCIA card
    0.27 65 % Boolean and 35 % numerical without PCMCIA card
    4 100 % Boolean with PCMCIA card
    0.266 65 % Boolean and 35 % numerical with PCMCIA card

    application structure
    16 event tasks
    1 master task
    1 fast task

    system overhead
    1.6 ms for master task

    protection type
    Overload protection
    Short-circuit

    total useful secondary power
    16 W

    electromagnetic compatibility
    Electrostatic discharge conforming to IEC 1000-4-2 level 3
    Electromagnetic field immunity test conforming to IEC 1000-4-3 level 3
    Resistance to fast transient conforming to IEC 1000-4-4 level 3
    Immunity to impulse waves conforming to IEC 1000-4-5
    Damped oscillatory wave conforming to IEC 1000-4-12
    Immunity to electromagnetic interference conforming to IEC 61131-2

    Environment
    ambient air temperature for operation
    0…60 °C

    ambient air temperature for storage
    -25…70 °C

    relative humidity
    10…95 % without condensation for operation
    5…95 % without condensation for operation

    operating altitude
    0...2000 m

    width
    341.4 mm

    height
    151 mm

    depth
    152 mm

    net weight
    1.72 kg

    Offer Sustainability
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
